Thinkcar ThinkScan HD - 5" Heavy Duty Scanner with Lifetime Free Updates
Thinkcar ThinkScan HD - 5" Heavy Duty Scanner with Lifetime Free Updates

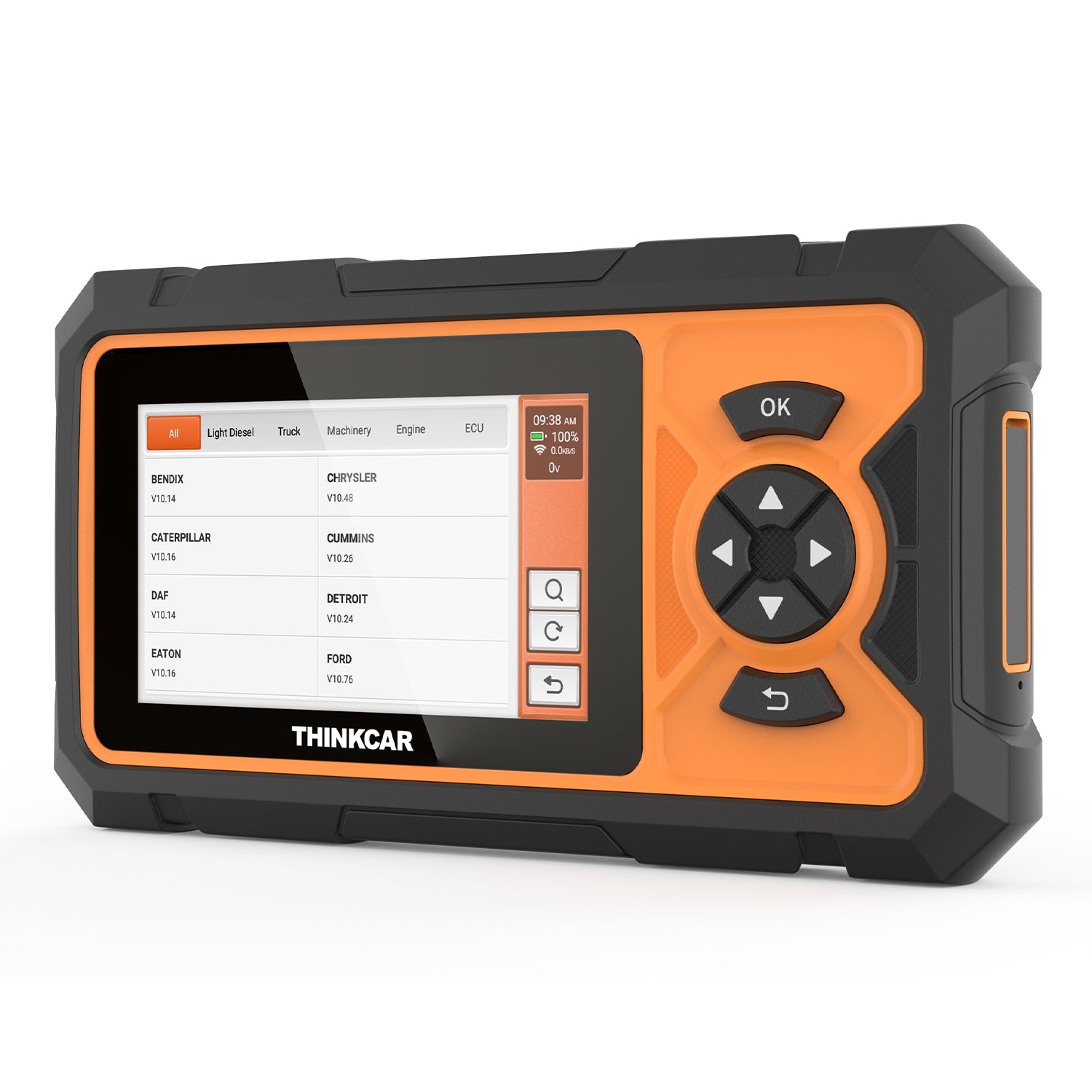

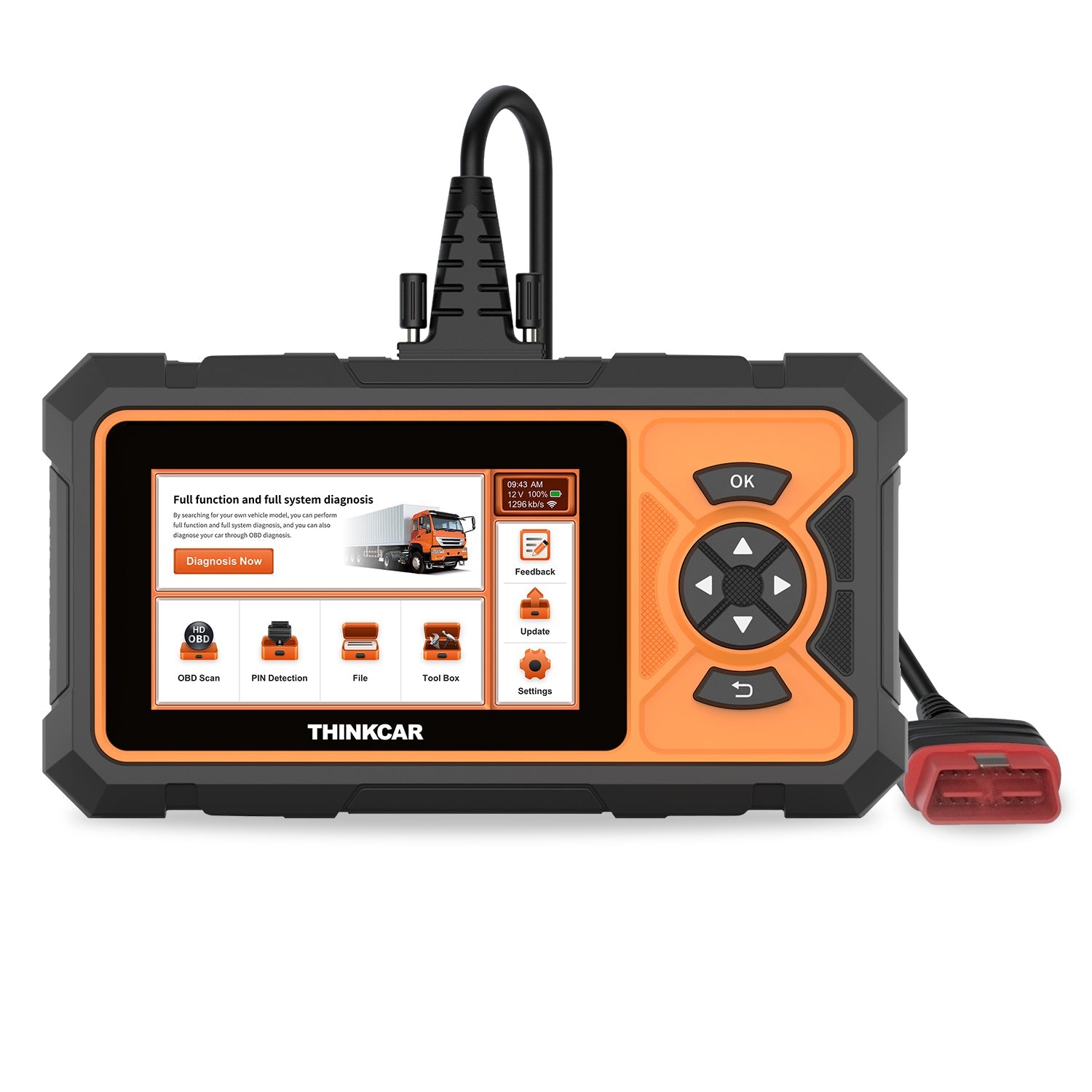

The ThinkCar ThinkScan HD is a 5-inch Android-based diagnostic scanner built for Class 4 through Class 8 trucks, buses, and medium-duty commercial vehicles. It reads and clears fault codes, streams live engine and chassis data, and runs special functions on diesel powertrains across more than 31 commercial vehicle brands. Every unit ships with lifetime free software updates, so you keep current coverage without paying an annual subscription.
Heavy-Duty Brand Coverage
The ThinkScan HD covers North American, European, and Asian truck and bus platforms. Typical coverage includes Cummins, Detroit Diesel, Volvo Trucks, Mack, PACCAR (Kenworth and Peterbilt), Freightliner, International (Navistar), Hino, Isuzu, Fuso, CAT on-highway, Allison transmissions, Bendix and Wabco brake systems, and additional bus and chassis manufacturers. Coverage depth varies by year and module, with deeper bidirectional support on newer ECMs. Refer to the in-app coverage list for exact year and system support on your fleet.
Connectors and Protocols
The kit includes a DB15 diagnostic cable plus three heavy-duty adapters:
- Type II OBD-9 (Deutsch 9-pin) for J1939 and J1708/J1587 trucks
- OBD-6 (Deutsch 6-pin) for older J1708/J1587 equipment
- CAT-9 adapter for Caterpillar on-highway and industrial engines
This connector set covers the diagnostic ports found on the vast majority of medium and heavy trucks, school and transit buses, and CAT-powered chassis built from the early 1990s to current model years.
Diagnostic Functions
- Read and clear DTCs on engine, transmission, ABS, instrument cluster, and body modules
- Live data stream with graphing for engine RPM, coolant temp, boost, fuel rail pressure, EGR position, DEF level, and hundreds of additional PIDs
- Read freeze frame data captured at the moment a code was set
- I/M readiness monitors and on-board monitor test results
- O2 sensor test
- VIN and PIN detection
- DPF regeneration support on compatible diesel ECMs
Hardware
- 5-inch color touchscreen, glove-friendly
- Android 6 operating system
- MediaTek MT6580 Cortex-A7 quad-core processor at 1.3 GHz
- 2 GB RAM and 32 GB onboard storage
- 3150 mAh / 3.8 V rechargeable battery
- Wi-Fi connectivity for one-touch software updates
Lifetime Free Updates
Most heavy-duty scan tools charge $400 to $1,200 per year to keep software current. The ThinkScan HD delivers updates at no cost for the life of the unit. New vehicle coverage, fixes, and added special functions download directly over Wi-Fi. There is no subscription renewal, no expiration window, and no per-brand upcharge. Over a five-year ownership cycle this typically saves $2,000 to $5,000 compared to subscription-based heavy-duty scanners.
Who It Is For
The ThinkScan HD fits independent diesel shops, fleet maintenance teams, mobile diesel techs, owner-operators, school district shops, and used-truck dealers who need fast code reading, live data, and basic special functions across mixed-fleet trucks without paying recurring software fees. It is not a full bidirectional dealer-level tool, so shops needing chassis parameter edits, injector trim writes, or full module programming should pair it with a brand-specific OEM tool.

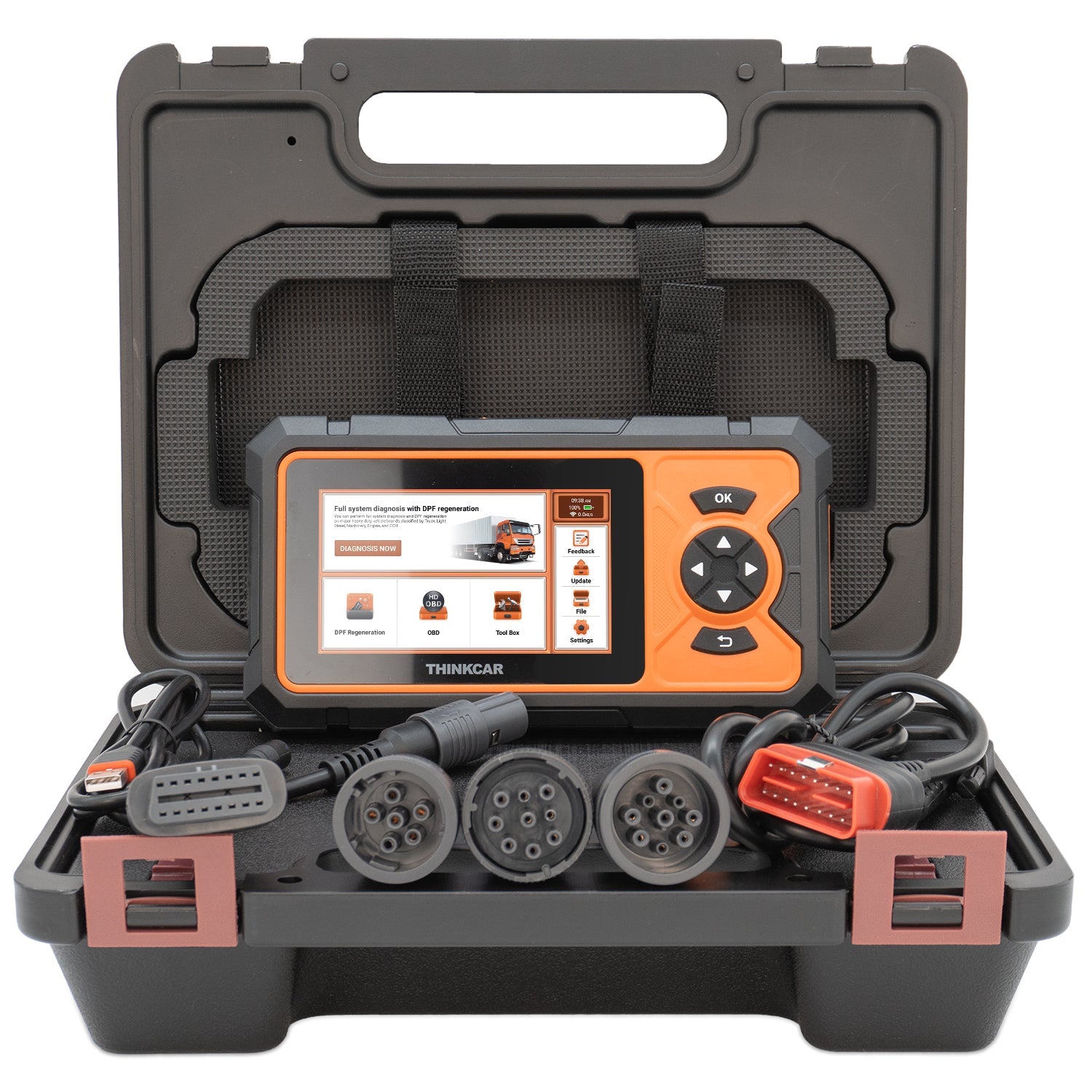

What's in the Box
- ThinkScan HD 5-inch tablet
- DB15 main diagnostic cable
- Type II OBD-9 (Deutsch 9-pin) connector
- OBD-6 (Deutsch 6-pin) connector
- CAT-9 adapter
- USB charging cable and power adapter
- Carry case and quick-start guide
- 1-year limited manufacturer warranty
