Thinkcar THINKTOOL MINI 6-Inch OBD2 Scanner with OE-Level Full System Car Diagnostic

The Thinkcar THINKTOOL MINI is a 6-inch handheld OBD2 scanner built for independent shops, mobile technicians, and serious DIY mechanics who need OE-level full-system diagnostics without carrying a full-size tablet. It runs the ThinkCar diagnostic platform on an Android-based touchscreen and connects to the vehicle through a wireless VCI dongle, so you can walk around the car while it pulls data from every module.

Full System Diagnostics

The THINKTOOL MINI reads and clears codes from every available control module on supported vehicles, not just the powertrain. That includes engine, transmission, ABS, SRS/airbag, body control, climate, immobilizer, instrument cluster, parking assist, transfer case, and more depending on the make. Live data streams can be viewed as text, graphs, or merged graphs for side-by-side PID comparison, and recorded data sets can be played back for review.

Reset and Service Functions

The MINI includes the most-used service resets technicians actually bill for:

• Oil Service Light Reset
• Electronic Parking Brake (EPB) Reset
• Steering Angle Sensor (SAS) Calibration
• Throttle Body Adaptation (TPS)
• Battery Management System (BMS) Registration
• Diesel Particulate Filter (DPF) Regeneration
• Anti-theft Matching / Key Programming on supported models
• ABS Bleeding and Injector Coding

Vehicle Coverage

Coverage spans more than 100 vehicle brands across domestic, Asian, and European cars, light trucks, and SUVs. The tool ships with one year of free software updates; after the first year, the update subscription renews annually so you can keep current with new model coverage and ECU revisions. All ten OBD2 modes are supported, including Mode 6 on-board monitor results and readiness status for emissions pre-checks.

Hardware

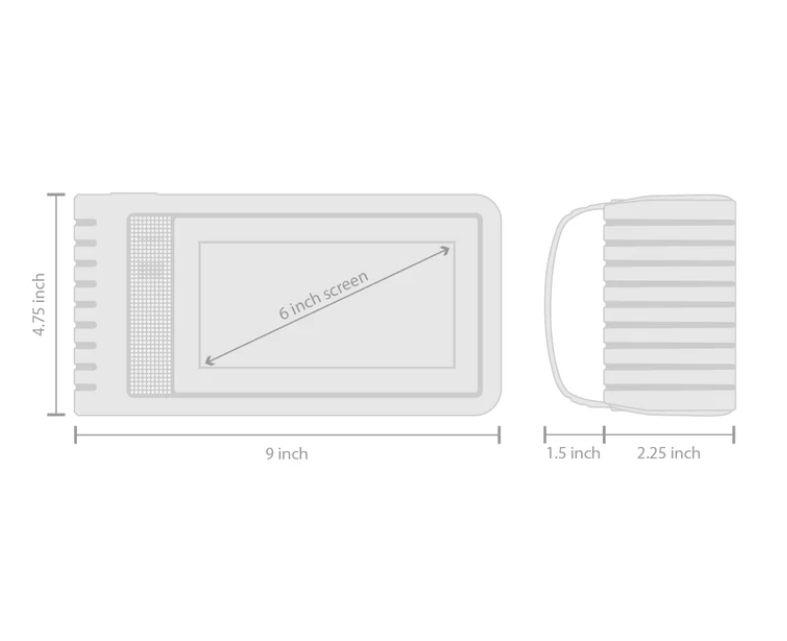

• 6-inch color touchscreen display
• Wireless VCI (Bluetooth) connection to the OBD2 port
• Rechargeable battery for cable-free use around the bay
• USB-C charging
• Built-in Wi-Fi for over-the-air software updates and ThinkCar cloud reporting
• Rugged housing sized to fit in a tech apron pocket

What's in the Box

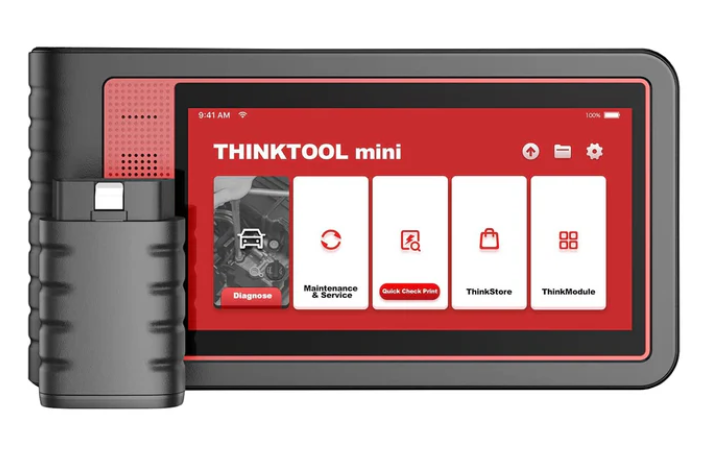

• THINKTOOL MINI tablet
• Wireless VCI dongle
• USB-C charging cable
• Quick start guide

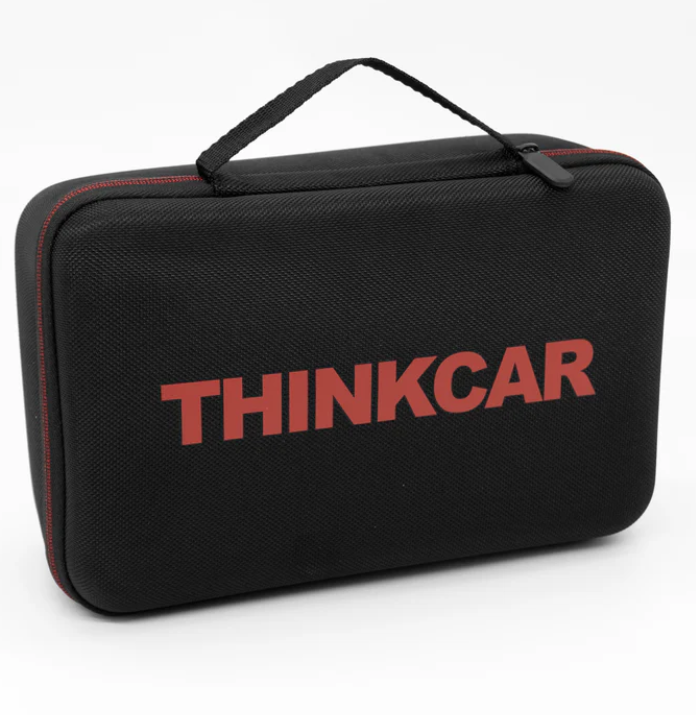

• Carry case

Diagnostic reports can be saved, printed, or emailed directly to the customer as a PDF, which is useful for documenting pre- and post-repair scans on insurance and warranty jobs. The tool is registered to your ThinkCar account on first boot, and the warranty starts from the activation date.

Who It's For

If you need a portable second tool that lives in the truck for road calls, or a primary scanner for a one-bay shop that does general repair and service work, the THINKTOOL MINI fits the slot between cheap code readers and full-size dealer tablets. It is not a replacement for OE software when you need ECU flashing or guided component programming, but for code reading, live data, bidirectional actuator tests on supported makes, and the common service resets, it does the daily job at a price most independent techs can justify.

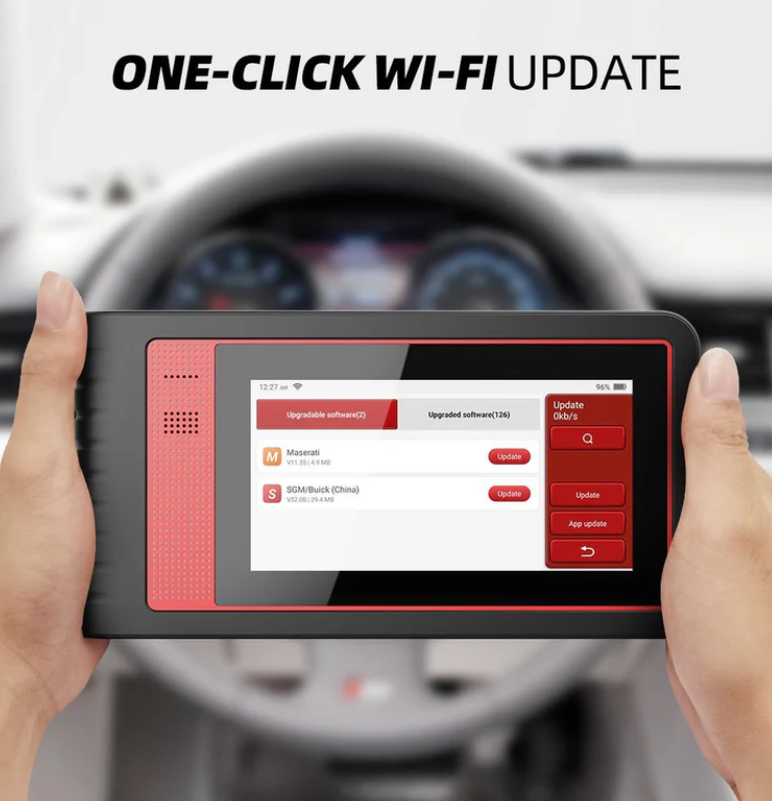

Pair the MINI with a printer over Wi-Fi for in-bay customer report printouts, or share the PDF directly to a service writer's email. Software updates push through the unit's Wi-Fi connection during the included subscription period.
